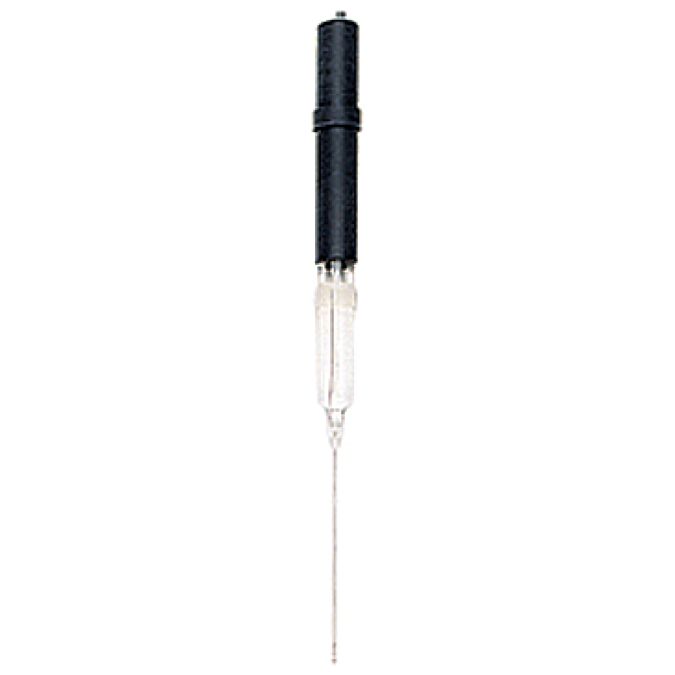

Orion 9810BN GLASS MICRO-PH COMB ELECT BNC

Specs & Details
Segment	WAI Lab
Unit	Water Analysis
Family	Lab Electrodes
Class	Consumables
Major Code	pH/ORP Sensors
Minor Code	LPH2- pH/ORP Sensors
Connector Types	BNC
Description	Micro pH Electrode
Electrode	Small tip glass combination micro electrode; Tip: 37 X 1.3mm; Min. sample volume: 0.5μL
Filling Solution Type	4M KCl with Ag/AgCl, Orion Cat. No. 900011
For Use With Application	For pH measurements in micro volume samples
Internal Reference	Single junction Ag/AgCl
Junction	Ceramic
Length English	4.72 in.
Length English Cable	3.28 ft.
Length Metric	120 mm
Length Metric Cable	1 m
Material	Small Tip Glass
Storage Requirements	To ensure a quick response and free-flowing junction, the sensing element and reference junction must not dry out. Always clean the electrode before storing it. Short-term storage (up to one week): Soak the electrode in pH electrode storage solution, Cat.
Temperature English Operating	32°F to 176°F
Temperature Metric Operating	0°C to 80°C
Unit Size	Each

Measure pH as low as 0.5μL samples in gels or micro containers with the Thermo Scientific™ Orion™ 9810BN Micro pH Electrode, a small-tipped glass combination electrode for pH measurements in micro volume samples.

Includes:

60ml bottle Orion electrode fill solution, 900011

Recommended for:

Use in gels or smaller sample volumes
